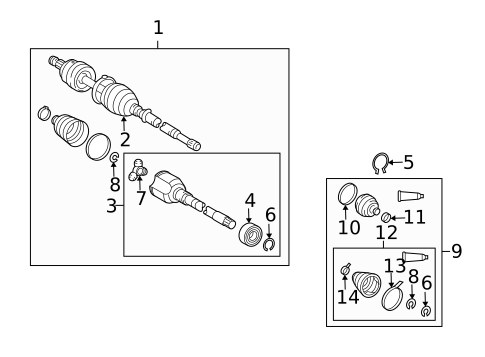

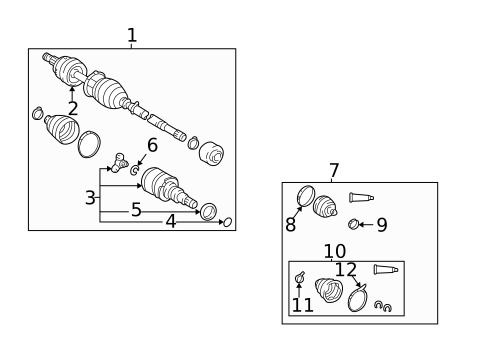

CV Components for 2004 Pontiac Vibe
No.
Part # / Description / Price
Price
1
Axle Assembly
GM
GM Positions: Left
Description: Vibe. Without awd. With gt. Manual trans. Left. Auto trans.
1
Acdelcoâ„¢ Cv Axle Assembly GM
GM Positions: Left
Description: Vibe. Without awd. With gt. Manual trans. Left. Auto trans.
2
Outer Joint Assembly GM
GM Positions: Left
Notes: PARTS: Part included with axle assembly.
Description: Vibe. Without awd. 2wd, with gt, passenger side. 2wd, with gt, driver side.
3
Inner Joint Assembly GM
GM Positions: Left
Notes: PARTS: Part included with axle assembly.
Description: Vibe. Left. 2wd, with gt, driver side.
4
Inner Joint Assembly Ring GM
GM Positions: Left
Notes: PARTS: Part included with inner joint assembly.
Description: 2wd, with gt, driver side.
5
Inner Joint Assembly Protector GM
GM Positions: Left
Notes: PARTS: Part included with inner joint assembly.
Description: 2wd, with gt, driver side. Awd, driver side.
6
Inner Joint Assembly C-Clip GM
GM Positions: Left
Notes: PARTS: Part included with axle assembly.
Description: 2wd, with gt, driver side. 2wd, with gt, passenger side. With awd, driver side, inner.
$14.68
$14.68
7
Boot Kit GM
GM Positions: Left
Notes: PARTS: Part included with outer joint assembly.
Description: Vibe. With gt. Includes inner cv boot.
8
Boot Kit Clamp GM
GM Positions: Left
Notes: PARTS: Part included with boot kit.
Description: 2wd, with gt, driver side, #1. 2wd, with gt, passenger side, large.
9
Boot Kit Clamp GM
GM Positions: Left
Notes: PARTS: Part included with boot kit.
Description: 2wd, with gt, driver side, #2. 2wd, with gt, passenger side, small.
10
Inner Boot GM
GM Positions: Left
Notes: PARTS: Part included with boot kit.
Description: Vibe. With gt.
11
Inner Boot Clamp GM
GM Positions: Left
Notes: PARTS: Part included with inner boot.
Description: 2wd, with gt, driver side, small. 2wd, with gt, passenger side, #2. With awd, driver side.
$15.89
$15.89
12
Inner Boot Clamp GM
GM Positions: Left
Notes: PARTS: Part included with inner boot.
Description: 2wd, with gt, driver side, large. 2wd, with gt, passenger side, #1. With awd, driver side, inner boot.
$12.47
$12.47
No.
Part # / Description / Price
Price
1
Acdelcoâ„¢ Axle Assembly GM
GM Positions: Right
Description: Awd, passenger side. Vibe. With awd. Right.
1
1
Acdelcoâ„¢ Cv Axle Assembly GM
GM Positions: Front right
Description: Vibe. Without awd. Manual trans. Right. 2wd, with gt, passenger side.
2
Outer Joint Assembly GM
GM Positions: Right
Notes: PARTS: Part included with axle assembly.
Description: Awd, passenger side. Vibe. With awd. Right.
$902.00
$902.00
3
Inner Joint Assembly GM
GM Positions: Right
Notes: PARTS: Part included with axle assembly.
Description: Awd, passenger side. Vibe. Without gt. With awd. Right.
4

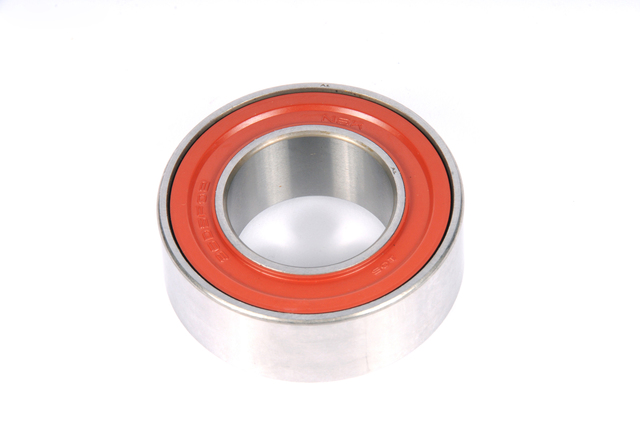

Bearing GM
GM Positions: Right
Notes: PARTS: Part included with inner joint assembly.
Description: Awd, passenger side.
6
Inner Joint Assembly Retainer Ring GM
GM Positions: Right
Notes: PARTS: Part included with inner boot.
Description: Awd, passenger side. Awd, driver side.
8
Spider Assembly Retainer GM
GM Positions: Right
Notes: PARTS: Part included with inner boot.
Description: Awd, passenger side.
9
Boot Kit GM
GM Positions: Right
Notes: PARTS: Part included with outer joint assembly.
Description: Awd, driver side, inner & outer. Awd, passenger side, inner & outer. Vibe. Without gt. With awd. Right. Includes inner cv boot.
10
Boot Kit Clamp GM
GM Positions: Right
Notes: PARTS: Part included with boot kit.
Description: Awd, driver side, large. Awd, passenger side, large.
11
Boot Kit Clamp GM
GM Positions: Right
Notes: PARTS: Part included with boot kit.
Description: Awd, driver side, small. Awd, passenger side, small.
12
Inner Boot GM
GM Positions: Right
Notes: PARTS: Part included with boot kit.
Description: Awd, driver side. Awd, passenger side. Vibe. Without gt. With awd.
$27.67
$27.67
13
Inner Boot Clamp GM
GM Positions: Right
Notes: PARTS: Part included with inner boot.
Description: Awd, driver side, large. Awd, passenger side, large.
