How To Replace A High Mount Brake Light Assembly In Your Escalade

Do you have a Cadillac Escalade with a bad high mount brake light assembly? Let this tutorial come to the rescue! You don’t need to bring your Escalade to a shop or dealer. You can replace the high mount brake light assembly right at home.

It’s a job that sounds easier said than done. But it’s actually a quick task anyone can do at home. All you need is a Phillips head screwdriver and about 10 minutes of your time.

Ordering An OEM Replacement High Mount Brake Light Assembly

Cadillac escalade high mount brake light

The first thing you need to do is to order an OEM replacement high mount brake light assembly. You could get an aftermarket one, but we advise against using aftermarket brake light assemblies for the reasons listed here.

You can find a great deal on a genuine OEM high mount brake light assembly on our website. You will not only get to enjoy rock bottom wholesale prices. You’ll also get a real OEM part that’s designed for your Escalade. Look up your Escalade in our catalog and see to find the high mount brake light assembly for your vehicle.

Once you have your replacement brake light assembly, read on to find out how to replace it on your Escalade.

Replacing Your Escalade High Mount Brake Light Assembly In Less Than 10 Minutes

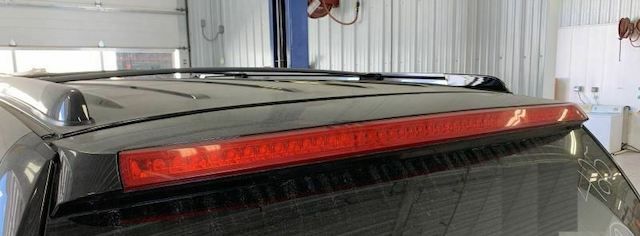

Escalade high mount brake light

Please note that we based this set of instructions on the 2002-2006 Escalade ESV. Yet, you may still be able to apply it to other Escalade models. Here’s how the replacement process goes:

  1. Unlock your Escalade. (Make sure the vehicle is off.)
  2. Open the back window.
  3. Don’t open the whole hatch. Just the window.
  4. You’ll see three Phillips screws at the top of the window. These screws are holding the high mount brake light assembly in place. Remove all the screws.
  5. Close the window.
  6. Remove the high mount brake light assembly by hand. Disconnect the wires from the brake light.
  7. Put the new high mount brake light assembly in place of the old one and then screw in place. Be sure to re-connect the wires.
  8. Turn on the Escalade.
  9. Have a buddy stand behind the vehicle with you in the driver’s seat. Hit the brakes and have your buddy tell you if the new light is working.

That’s all! The process is an easy and straightforward one.

Do you have any questions? Or do you need clarification about something? You’re welcome to contact us.
