Front Suspension/Suspension Components for 2014 Chevrolet Express 2500

About GM Parts Center: GMPartsCenter.net is one of the leading GM replacement part and accessory ecommerce websites in the world. We only offer 100% genuine GM parts and accessories at the best prices, we have a huge inventory of parts, and we offer fast, affordable shipping. Find parts for your 2014 Chevrolet Express 2500 online or call 855-902-6413 for a free parts look-up.

2014 Chevrolet Express 2500

Change vehicle

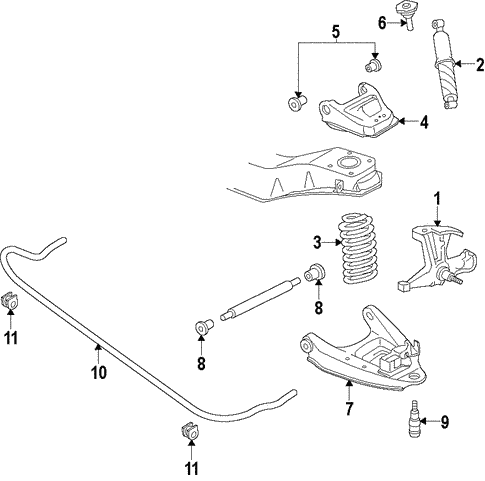

No. Part # Part # / Description List Price Price
1 84583306 84583306 / Knuckle

Knuckle, RIGHT

W/ O AWD, 3/ 4 TON, 8500 & 8600 GVW

$227.56 $151.75
1 84583305 84583305 / Knuckle

Knuckle, LEFT

W/ O AWD, 3/ 4 TON, 8500 & 8600 GVW

$227.56 $151.75
9 19210782 19210782 / Stud Kit,Frt Lwr Cont Arm Ball

Stud Kit,Frt Lwr Cont Arm Ball, LEFT

W/ O AWD, 3/ 4 TON, 8500 & 8600 GVW

$85.96 $57.82
9 19210782 19210782 / Stud Kit,Frt Lwr Cont Arm Ball

Stud Kit,Frt Lwr Cont Arm Ball, RIGHT

W/ O AWD, 3/ 4 TON, 8500 & 8600 GVW

$85.96 $57.82
10 20760346 20760346 / Coil Spring

Spring, RIGHT

W/ O AWD, CODE: 6AM & 7AM

$90.21 $60.68
10 20760345 20760345 / Spring-Frt

Spring-Frt, LEFT

W/ O AWD, CODE: 6AL & 7AL

$86.67 $58.29
10 20760344 20760344 / Spring-Frt

Spring-Frt, LEFT

W/ O AWD, CODE: 6AK & 7AK

$84.52 $56.84
10 20760340 20760340 / Coil Spring

Spring, RIGHT

W/ O AWD, CODE: 6AD & 7AD

$82.26 $55.33
10 20760347 20760347 / Coil Spring

Spring, LEFT

W/ O AWD, CODE: 6AN & 7AN

$91.47 $61.51
10 20760340 20760340 / Coil Spring

Spring, LEFT

W/ O AWD, CODE: 6AC & 7AC

$82.26 $55.33
10 20760344 20760344 / Spring-Frt

Spring-Frt, RIGHT

W/ O AWD, CODE: 6AK & 7AK

$84.52 $56.84
10 20760345 20760345 / Spring-Frt

Spring-Frt, RIGHT

W/ O AWD, CODE: 6AL & 7AL

$86.67 $58.29
10 20760346 20760346 / Coil Spring

Spring, LEFT

W/ O AWD, CODE: 6AM & 7AM

$90.21 $60.68
10 20760347 20760347 / Coil Spring

Spring, RIGHT

W/ O AWD, CODE: 6AN & 7AN

$91.47 $61.51
10 22875261 22875261 / Spring-Frt

Spring-Frt, LEFT

W/ O AWD, CODE: 6AP & 7AP

$112.05 $75.37
10 22875261 22875261 / Spring-Frt

Spring-Frt, RIGHT

W/ O AWD, CODE: 6AP & 7AP

$112.05 $75.37
11 15756770 15756770 / Insulator-Frt Spr

Insulator-Frt Spr, RIGHT

W/ O AWD

$11.99 $8.21
11 15756770 15756770 / Insulator-Frt Spr

Insulator-Frt Spr, LEFT

W/ O AWD

$11.99 $8.21
No. Part # Part # / Description List Price Price
2 25793553 25793553 / Arm Asm-Frt Upr Cont

Arm Asm-Frt Upr Cont, RIGHT

W/ AWD

$302.27 $201.58
2 25793550 25793550 / Arm Asm-Frt Upr Cont

Arm Asm-Frt Upr Cont, LEFT

W/ AWD

$302.27 $201.58
3 15727765 15727765 / Bushing,Frt Upr Cont Arm

Bushing,Frt Upr Cont Arm, RIGHT

W/ AWD

$28.91 $19.61
3 15727765 15727765 / Bushing,Frt Upr Cont Arm

Bushing,Frt Upr Cont Arm, LEFT

W/ AWD

$28.91 $19.61
4 15741217 15741217 / Cam-Frt Upr Cont Arm Adj

W/ AWD

$3.97 $2.76
6 20869232 20869232 / Arm Asm-Frt Lwr Cont

Arm Asm-Frt Lwr Cont, LEFT

W/ AWD

$265.56 $177.10
6 20869233 20869233 / Arm Asm-Frt Lwr Cont

Arm Asm-Frt Lwr Cont, RIGHT

W/ AWD

$265.56 $177.10
7 15153952 15153952 / Lower Control Arm Front Bushing

Lower Control Arm Front Bushing, RIGHT

W/ AWD

$36.34 $24.64
7 15153952 15153952 / Lower Control Arm Front Bushing

Lower Control Arm Front Bushing, LEFT

W/ AWD

$36.34 $24.64
8 15153952 15153952 / Lower Control Arm Front Bushing

Lower Control Arm Rear Bushing, RIGHT

W/ AWD

$36.34 $24.64
8 15153952 15153952 / Lower Control Arm Front Bushing

Lower Control Arm Rear Bushing, LEFT

W/ AWD

$36.34 $24.64
9 12475478 12475478 / Stud Kit,Frt Lwr Cont Arm Ball

Stud Kit,Frt Lwr Cont Arm Ball, LEFT

W/ AWD

$159.65 $106.47
9 12475478 12475478 / Stud Kit,Frt Lwr Cont Arm Ball

Stud Kit,Frt Lwr Cont Arm Ball, RIGHT

W/ AWD

$159.65 $106.47
10 84303234 84303234 / Shock Absorber

Shock, RIGHT

W/ AWD, 3/ 4 TON

$80.94 $47.74
10 84303234 84303234 / Shock Absorber

Shock, LEFT

W/ AWD, 3/ 4 TON

$80.94 $47.74
11 15750719 15750719 / Torsion Bar

Torsion Bar, LEFT

W/ AWD

$122.29 $82.25
11 15750720 15750720 / Torsion Bar

Torsion Bar, RIGHT

W/ AWD

$105.07 $70.67
12 15592574 15592574 / Arm

Torsion Arm, RIGHT

W/ AWD, COLOR CODE: WHITE

$45.43 $30.82
12 15592573 15592573 / Arm,Tors Bar Adj

Arm,Tors Bar Adj, RIGHT

W/ AWD, COLOR CODE: GREEN

$45.43 $30.82
12 15592574 15592574 / Arm

Torsion Arm, LEFT

W/ AWD, COLOR CODE: WHITE

$45.43 $30.82
12 15592573 15592573 / Arm,Tors Bar Adj

Arm,Tors Bar Adj, LEFT

W/ AWD, COLOR CODE: GREEN

$45.43 $30.82
13 15750844 15750844 / Support Asm-Tors Bar

W/ AWD

$171.15 $114.15
Front Suspension/Suspension Components for 2014 Chevrolet Express 2500 #3
No. Part # Part # / Description List Price Price
N/A 25747956 25747956 / Link Asm-Frt Stab Shf

EXPRESS, SAVANA

$38.81 $26.33
N/A 84231007 84231007 / Hub & Bearing

EXPRESS, SAVANA; 3/ 4 TON; ALL

$307.32 $179.77
1 84583305 84583305 / Knuckle

EXPRESS, SAVANA; UNDER 7500 GVW; LEFT; 3/ 4 TON

$227.56 $151.75
1 84583306 84583306 / Knuckle

EXPRESS, SAVANA; OVER 7500 GVW; RIGHT; 3/ 4 TON

$227.56 $151.75
2 84303234 84303234 / Shock Absorber

EXPRESS, SAVANA; 3/ 4 TON; 7300 GVWR

$80.94 $47.74
3 20760345 20760345 / Spring-Frt

EXPRESS, SAVANA; RIGHT; ALL; 7AL

$86.67 $58.29
3 20760347 20760347 / Coil Spring

EXPRESS, SAVANA; RIGHT; ALL; 7AN

$91.47 $61.51
3 20760340 20760340 / Coil Spring

EXPRESS, SAVANA; LEFT; ALL; 6AC

$82.26 $55.33
4 25793550 25793550 / Arm Asm-Frt Upr Cont

EXPRESS, SAVANA; OVER 7500 GVW; LEFT

$302.27 $201.58
4 15864153 15864153 / Arm,Frt Upr Cont

EXPRESS, SAVANA; UNDER 7500 GVW; RIGHT

$368.72 $245.90
4 25793553 25793553 / Arm Asm-Frt Upr Cont

EXPRESS, SAVANA; OVER 7500 GVW; RIGHT

$302.27 $201.58
5 15727765 15727765 / Bushing,Frt Upr Cont Arm

EXPRESS, SAVANA; 6.0L

$28.91 $19.61
7 15750831 15750831 / Lower Control Arm

EXPRESS, SAVANA; RIGHT; 3/ 4 TON; 7300 GVWR

$308.90 $206.01
7 20869232 20869232 / Arm Asm-Frt Lwr Cont

EXPRESS, SAVANA; LEFT; 3/ 4 TON; 8500 & 8600 GVWR

$265.56 $177.10
7 15750830 15750830 / Arm Asm-Frt Lwr Cont

EXPRESS, SAVANA; LEFT; 3/ 4 TON; 7300 GVWR

$308.90 $206.01
7 20869233 20869233 / Arm Asm-Frt Lwr Cont

EXPRESS, SAVANA; RIGHT; 3/ 4 TON; 8500 & 8600 GVWR

$265.56 $177.10
9 19210782 19210782 / Stud Kit,Frt Lwr Cont Arm Ball

EXPRESS, SAVANA; OVER 7500 GVW

$85.96 $57.82
9 12475478 12475478 / Stud Kit,Frt Lwr Cont Arm Ball

EXPRESS, SAVANA; UNDER 7500 GVW

$159.65 $106.47
10 15750847 15750847 / Shaft-Frt Stab Orange

EXPRESS, SAVANA; 3/ 4 TON; 8500 & 8600 GVWR

$96.06 $64.61
10 15750845 15750845 / Stabilizer Bar

EXPRESS, SAVANA; 3/ 4 TON; 7300 GVWR

$87.61 $58.93
11 15005612 15005612 / Insulator,Frt Stab Shf

EXPRESS, SAVANA

$27.77 $18.84
No. Part # Part # / Description List Price Price
N/A 15042048 15042048 / Insulator,Frt S/Abs

Insulator,Frt S/Abs, LEFT

W/ O AWD

$11.25 $7.69
N/A 15042048 15042048 / Insulator,Frt S/Abs

Insulator,Frt S/Abs, RIGHT

W/ AWD

$11.25 $7.69
N/A 15834275 15834275 / Insulator,Frt S/Abs

Insulator,Frt S/Abs, LEFT

W/ O AWD

$24.72 $16.91
No. Part # Part # / Description List Price Price
N/A 25751134 25751134 / Insulator-Frt Spr

Insulator-Frt Spr, RIGHT

W/ O AWD

$15.50 $10.60
N/A 25751134 25751134 / Insulator-Frt Spr

Insulator-Frt Spr, LEFT

W/ O AWD

$15.50 $10.60
N/A 15834275 15834275 / Insulator,Frt S/Abs

Insulator,Frt S/Abs, RIGHT

W/ O AWD

$24.72 $16.91
