Cooling System/Radiator & Components for 1996 Buick Riviera

About GM Parts Center: GMPartsCenter.net is one of the leading GM replacement part and accessory ecommerce websites in the world. We only offer 100% genuine GM parts and accessories at the best prices, we have a huge inventory of parts, and we offer fast, affordable shipping. Find parts for your 1996 Buick Riviera online or call 855-902-6413 for a free parts look-up.

1996 Buick Riviera

Change vehicle

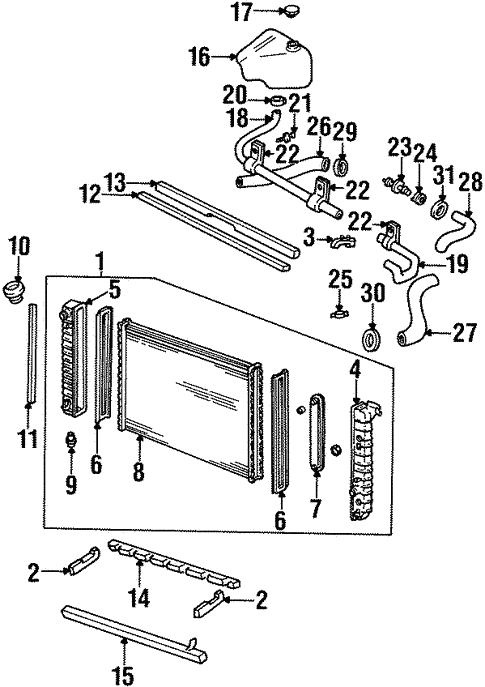

No. Part # Part # / Description List Price Price
1 52472633 52472633 / Radiator Assembly

- -
2 25630316 25630316 / Lower Insulator

Radiator Assembly Lower Insulator

- -
3 25614734 25614734 / Upper Insulator

Radiator Assembly Upper Insulator

- -
4 52469749 52469749 / Tank

OUTLET

- -
5 52469747 52469747 / Tank

INLET

- -
6 52484143 52484143 / Tank Gasket Set

Tank Gasket

- -
7 52473259 52473259 / Trans Cooler

- -
9 52453065 52453065 / Drain Plug

- -
11 25614947 25614947 / Side Seal

- -
12 25692152 25692152 / Upper Seal

TO CONDENSER

- -
13 25619226 25619226 / Upper Seal

TO RADIATOR

- -
14 25614944 25614944 / Lower Seal

NON ADHESIVE

- -
15 25614949 25614949 / Lower Seal

ADHESIVE

- -
16 25639270 25639270 / Recovery Tank

- -
17 25635870 25635870 / Cap

Reservoir Cap

- -
18 25606917 25606917 / Hose

Hose, RIGHT

COOLANT RECOVERY

- -
19 25617718 25617718 / Hose

Hose, LEFT

COOLANT RECOVERY

- -
20 11609970 11609970 / Clamp Asm - Type F Worm Gear

$3.78 $2.62
21 25617719 25617719 / Hose Connector

- -
22 25625420 25625420 / Hose Clip

- -
23 11589290 11589290 / Pin - Push, Fits 6.5 Hole,4.5 -7.0 Thk P Black

$4.44 $3.09
24 3786276 3786276 / Clamp

Hose Clamp

$6.76 $4.67
25 19151900 19151900 / Switch Asm,Eng Cool Lvl

$132.23 $92.83
28 25535149 25535149 / By-Pass Hose

- -
30 12338017 12338017 / Clamp,Air Injn C/Vlv Hose

LOWER HOSE

$6.35 $4.65
31 1470030 1470030 / Clamp,Inter Strg Shf Seal

BYPASS HOSE

$4.62 $3.38
Cooling System/Radiator & Components for 1996 Buick Riviera #2
No. Part # Part # / Description List Price Price
6 24506986 24506986 / Thermostat,Eng Cool(W/Gskt)

$16.19 $9.72
7 12594580 12594580 / Outlet-Wat

$31.28 $18.61
N/A 13503103 13503103 / Relay

Fan Relay

AURORA, RIVERIA

$7.53 $4.60
1 52472633 52472633 / Radiator Assembly

Radiator

RIVIERA

- -
2 25617700 25617700 / Upper Hose

RIVIERA; ALL

- -
3 25621001 25621001 / Lower Hose

RIVIERA; ALL

- -
4 10409635 10409635 / Cap,Rad Fil

RIVIERA

$17.52 $10.51
5 19209288 19209288 / Pump Kit,Wat

RIVIERA

$200.62 $117.37
8 22137018 22137018 / Fan Blade

RIVIERA; RIGHT

- -
8 22137017 22137017 / Fan Blade

RIVIERA; LEFT

- -
9 88890701 88890701 / Motor

Fan Motor

RIVIERA; RIGHT

$95.55 $56.38
9 22137318 22137318 / Motor Kit,Eng Clg Fan

RIVIERA; LEFT

$153.78 $89.96
10 22137013 22137013 / Fan Shroud

RIVIERA; LEFT

- -
10 22137014 22137014 / Fan Shroud

RIVIERA; RIGHT

- -
No. Part # Part # / Description List Price Price
N/A 24502433 24502433 / Gasket - Wat Otlt

$3.34 $2.04
No. Part # Part # / Description List Price Price
N/A 24506985 24506985 / Seal-Eng Cool Therm (O Ring)

O-Ring

$8.73 $5.33
